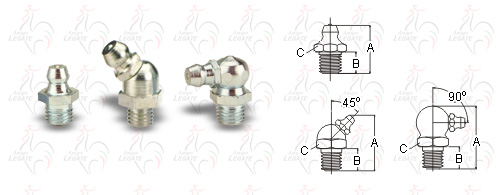

Metric Fittings
Datasheet
| Item No. |
Description |
Type |
a |
b |
c |
STD PACK |
| mm |
mm |
mm |
Q'ty/ctn |
W.T/kg |
| 061000 |
M6 X 1.00 |
Str. |
13.9 |
4.0 |
7 |
8,000 |
23 |
| 061001 |
M6 X 1.00 |
Str. |
15.0 |
5.5 |
7 |
8,000 |
21 |
| 061045 |
M6 X 1.00 |
45° |
23.0 |
5.5 |
9 |
3,000 |
19 |
| 061090 |
M6 X 1.00 |
90° |
19.0 |
5.5 |
9 |
3,000 |
20 |
| 081000 |
M8 X 1.00 |
Str. |
16.0 |
6.0 |
9 |
4,000 |
21 |
| 081045 |
M8 X 1.00 |
45° |
24.0 |
6.0 |
9 |
3,000 |
20 |
| 081090 |
M8 X 1.00 |
90° |
19.5 |
6.0 |
9 |
3,000 |
21 |
| 081200 |
M8 X 1.25 |
Str. |
16.0 |
6.0 |
9 |
4,000 |
21 |
| 081245 |
M8 X 1.25 |
45° |
24.0 |
6.0 |
9 |
3,000 |
20 |
| 081290 |
M8 X 1.25 |
90° |
19.5 |
6.0 |
9 |
3,000 |
21 |
| 101000 |
M10 X 1.00 |
Str. |
16.5 |
6.5 |
11 |
4,000 |
25 |
| 101045 |
M10 X 1.00 |
45° |
24.9 |
6.5 |
11 |
2,400 |
23 |
| 101090 |
M10 X 1.00 |
90° |
21.0 |
6.5 |
11 |
2,400 |
24 |
| 101200 |
M10 X 1.25 |
Str. |
16.5 |
6.5 |
11 |
4,000 |
25 |
| 101245 |
M10 X 1.25 |
45° |
24.9 |
6.5 |
11 |
2,400 |
23 |
| 101290 |
M10 X 1.25 |
90° |
21.0 |
6.5 |
11 |
2,400 |
24 |
| 101500 |
M10 X 1.50 |
Str. |
16.5 |
6.5 |
11 |
4,000 |
25 |
| 101545 |
M10 X 1.50 |
45° |
24.9 |
6.5 |
11 |
2,400 |
23 |
| 101590 |
M10 X 1.50 |
90° |
21.0 |
6.5 |
11 |
2,400 |
24 |
| 121200 |
M12 X 1.25 |
Str. |
19.5 |
6.9 |
14 |
1,600 |
23 |
| 121245 |
M12 X 1.25 |
45° |
24.5 |
6.9 |
14 |
1,000 |
23 |
| 121290 |
M12 X 1.25 |
90° |
21.1 |
6.9 |
14 |
1,000 |
24 |
| 121500 |
M12 X 1.50 |
Str. |
19.5 |
6.9 |
14 |
1,600 |
23 |
| 121545 |
M12 X 1.50 |
45° |
24.5 |
6.9 |
14 |
1,000 |
23 |
| 121590 |
M12 X 1.50 |
90° |
21.1 |
6.9 |
14 |
1,000 |
24 |
