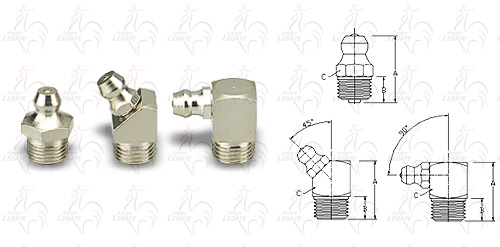

DIN Type Fittings

Datasheet
Item No. Description Type a b c STD PACK
mm mm mm Q'ty/ctn W.T/kg
061000DN 6mm x 1.0 Str. 16.0 5.5 7 8,000 21
061045DN 6mm x 1.0 45° 15.5 5.5 9 2,400 17
061090DN 6mm x 1.0 90° 18.0 5.5 9 2,400 22
081000DN 8mm x 1.0 Str. 17.0 5.5 9 4,000 21
081045DN 8mm x 1.0 45° 15.5 5.5 9 2,000 18
081090DN 8mm x 1.0 90° 18.0 5.5 9 2,000 23
101000DN 10mm x 1.0 Str. 18.0 5.5 11 4,000 25
101045DN 10mm x 1.0 45° 15.5 5.5 11 2,000 19
101090DN 10mm x 1.0 90° 18.0 5.5 11 2,000 24
